Din rail power supply - Pwr sup.unit pulse, 480W, 48VDC, 10A, 180÷550VAC, 254÷780VDC

Prod code: 16041

WDR-480-48 PDF

WDR-480-48

Price:  144.25 €
VAT:  34.62 €
Final price with tax:  178.87 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer MEAN WELL
Pwr sup. unit type switched-mode
Power 480W
Output voltage 48V DC, 48...55V DC
Output current 10A
Supply voltage 180...550V AC, 254...780V DC
Electrical connection terminal block
Mounting DIN
Body dimensions 85.5 x 125.2 x 128.5mm
Weight 1.7kg
Number of outputs 1
Operating temperature 30...70°C
Protection overload, overheating, overvoltage, short-circuit
Efficiency 93%
Additional functions active PFC, output voltage correctness indication (NO contact)
Power supply/converter features rated parameters obtained at full load
Series WDR-480
Case type 984B

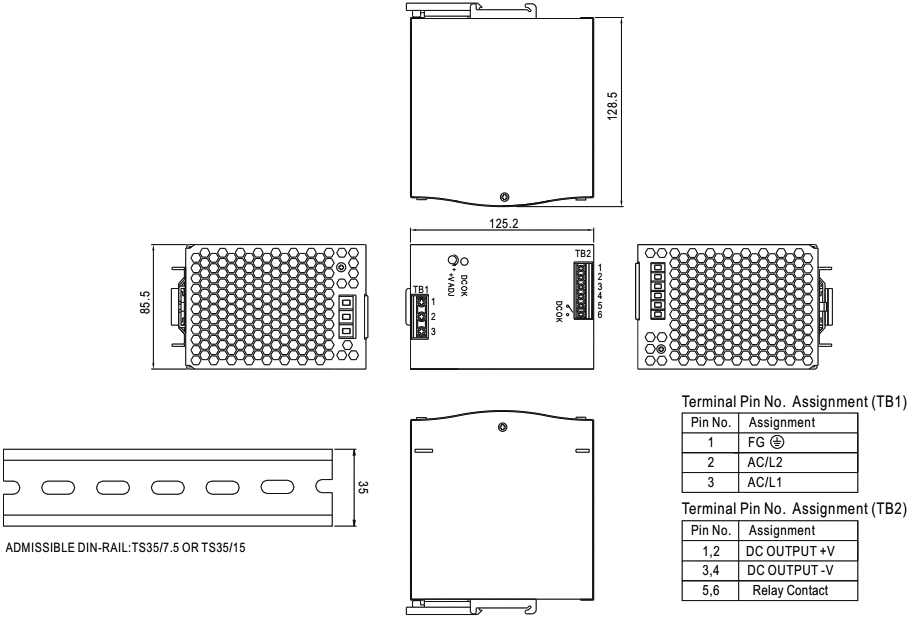

Dimensions  VIEW

Availability: With order
