Pwr sup.unit pulse 38.4W Uout 48VDC 0.8A 88÷264VAC Outputs 1 - 14.32 EUR : acdcshop.gr


power supplies - Pwr sup.unit pulse 38.4W Uout 48VDC 0.8A 88÷264VAC Outputs 1	Prod code: 12799
PDF	RS-35-48

Click to enlarge Pwr sup.unit pulse 38.4W Uout 48VDC 0.8A 88÷264VAC Outputs 1

Price:	14.32 €
VAT:	3.44 €
Final price with tax:	17.76 €
Amount:
Usually shipped within 2-3 business days.

Specifications
Manufacturer	MEAN WELL
Pwr sup. unit type	switched-mode
Kind of power supply	modular
Power	38.4W
Output voltage	48V DC
Output current	0.8A
Supply voltage	88...264V AC, 125...373V DC
Weight	300g
Electrical connection	terminal block
Protection	overload, voltage growth, short-circuit
Mounting	for building in
Number of outputs	1
Operating temperature	25...70°C
Body dimensions	99 x 82 x 36mm
Power supply/converter features	rated parameters obtained at full load
Series	RS-35
Efficiency	88.5%
Case type	932A

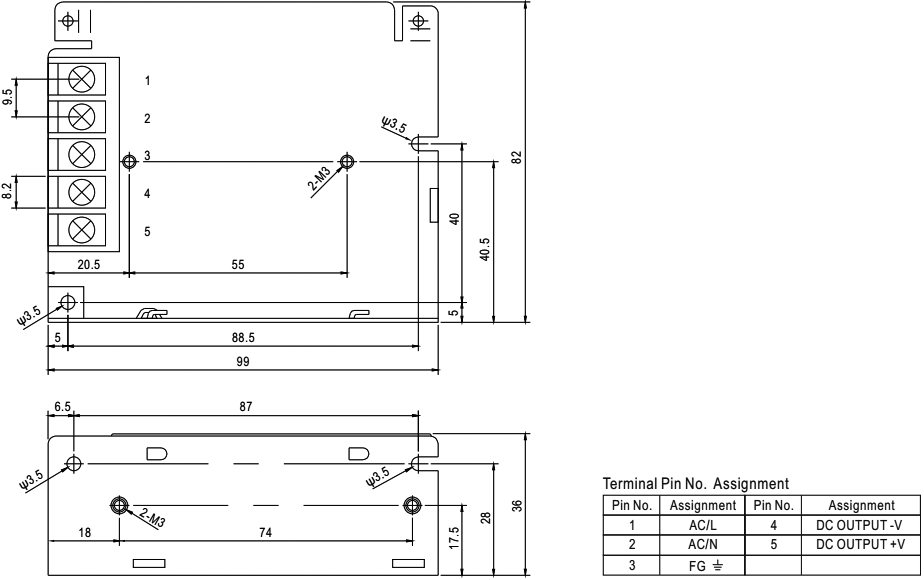

Dimensions	VIEW

Availability: With order
