Pwr sup.unit pulse, 36W, 120÷370VDC, 85÷264VAC, Outputs 1, 12VDC - 12.89 EUR : acdcshop.gr


Open Frame Power Supply - Pwr sup.unit pulse, 36W, 120÷370VDC, 85÷264VAC, Outputs 1, 12VDC	Prod code: 17294
PDF	EPS-35-12

Click to enlarge Pwr sup.unit pulse, 36W, 120÷370VDC, 85÷264VAC, Outputs 1, 12VDC

Price:	12.89 €
VAT:	3.09 €
Final price with tax:	15.99 €
Amount:
Long delivery time Long delivery time

Specifications
Manufacturer	MEAN WELL
Pwr sup. unit type	switched-mode
Power	36W
Supply voltage	85...264V AC, 120...370V DC
Number of outputs	1
Output voltage	12V DC, 10.8...13.5V DC
Output current	3A
Kind of power supply	open
Mounting	for building in
Operating temperature	30...70°C
Protection	overload, voltage growth, short-circuit
Weight	85g
Body dimensions	76.2 x 50.8 x 24mm
Efficiency	87%
Series	EPS-35
Electrical connection	plug with 3,96mm pitch

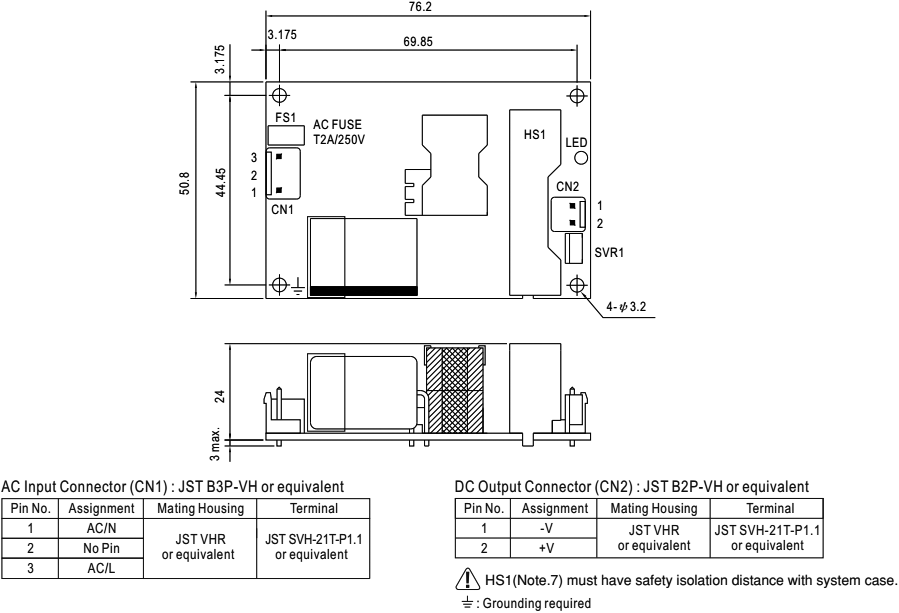

Dimensions	VIEW

Power supply/converter features: no load power consumption <0,3W rated parameters obtained at full load

Availability: With order
