Open Frame power supply - Pwr sup.unit pulse, 25W, 120÷370VDC, 88÷264VAC, Outputs 2, 5VDC

Prod code: 17299

MPS-30-5 PDF

MPS-30-5

Price:  26.28 €
VAT:  6.31 €
Final price with tax:  32.58 €
Amount:
Warning Long delivery time
Specifications
Manufacturer MEAN WELL
Pwr sup. unit type switched-mode
Power 25W
Supply voltage 88...264V AC, 120...370V DC
Number of outputs 1
Output voltage 5V DC
Output current 5A
Kind of power supply open
Power supply/converter features rated parameters obtained at full load
Mounting for building in
Operating temperature 10...60°C
Protection overload, overheating, voltage growth, short-circuit
Weight 160g
Body dimensions 101.6 x 65.8 x 23.5mm
Efficiency 72%
Series MPS-30
Electrical connection plug with 3,96mm pitch

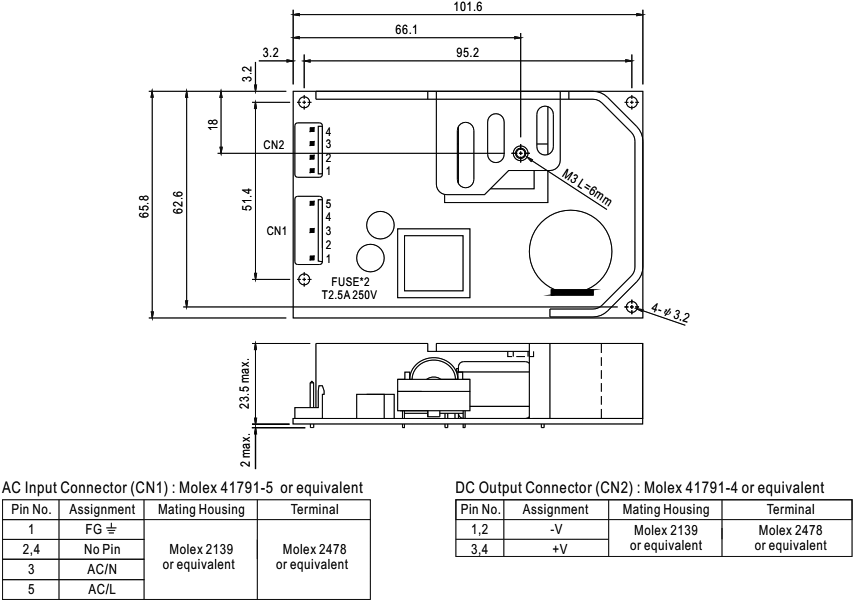

Dimensions  VIEW

Availability: With order
