power supplies - Pwr sup.unit pulse, 20W, 5VDC, 4A, 85÷264VAC, 120÷370VDC, 59g

Prod code: 16108

IRM-20-5 PDF

IRM-20-5

Price:  10.21 €
VAT:  2.45 €
Final price with tax:  12.66 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer MEAN WELL
Pwr sup. unit type switched-mode
Kind of power supply modular
Power 20W
Output voltage 5V DC
Output current 4A
Supply voltage 120...370V DC, 85...264V AC
Weight 59g
Electrical connection THT
Protection overload, voltage growth, short-circuit
Mounting PCB
Number of outputs 1
Operating temperature 30...70°C
Body dimensions 52.4 x 27.2 x 24mm
Series IRM
Efficiency 79%

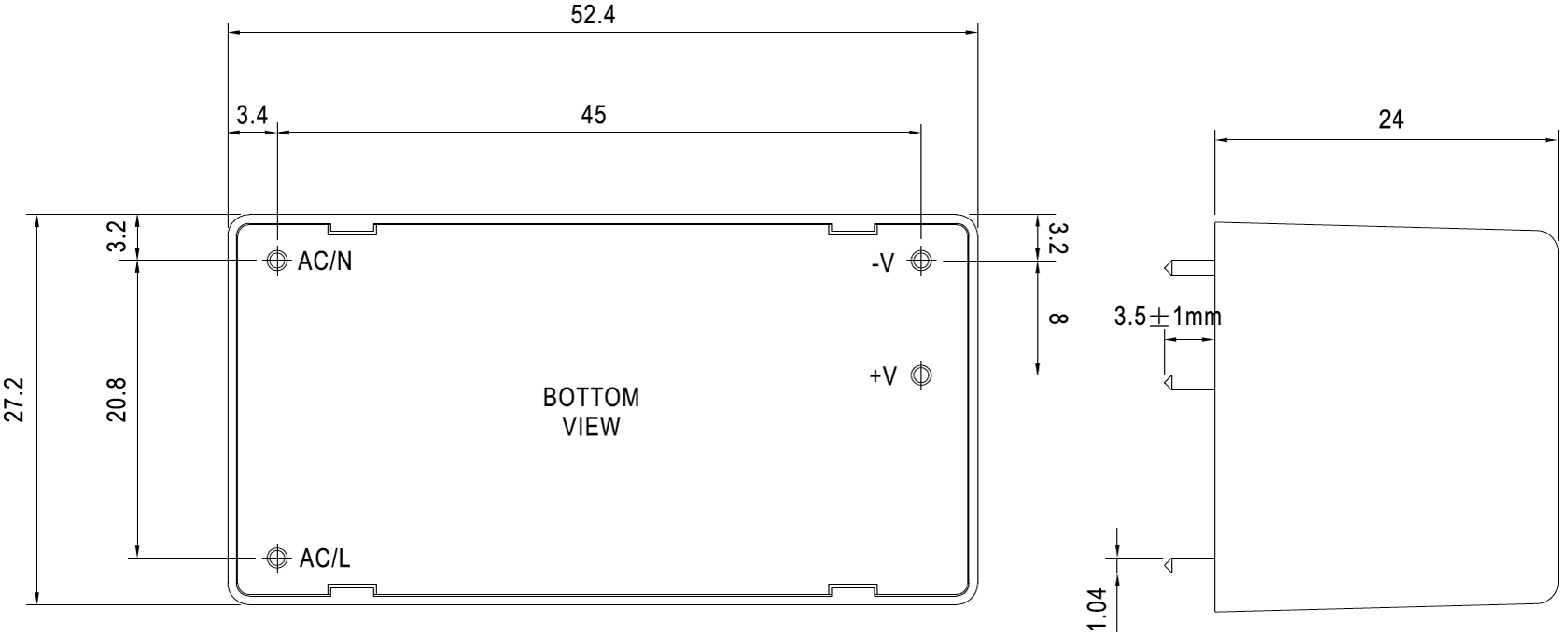

Dimensions  VIEW

Power supply/converter features:
  • no load power consumption <0,1W
  • rated parameters obtained at full load
Availability: On stock
