Pwr sup.unit pulse, 203.4W, 5VDC, 12VDC, 24VDC, -12VDC, 15A, 4A, 3A - 124.74 EUR : acdcshop.gr


power supplies - Pwr sup.unit pulse, 203.4W, 5VDC, 12VDC, 24VDC, -12VDC, 15A, 4A, 3A	Prod code: 17231
PDF	QP-200-D

Click to enlarge Pwr sup.unit pulse, 203.4W, 5VDC, 12VDC, 24VDC, -12VDC, 15A, 4A, 3A

Price:	124.74 €
VAT:	29.94 €
Final price with tax:	154.68 €
Amount:
Long delivery time Long delivery time

Specifications
Manufacturer	MEAN WELL
Pwr sup. unit type	switched-mode
Kind of power supply	modular
Power	203.4W
Output voltage	5V DC
Output voltage 2	12V DC
Output voltage 3	24V DC
Output voltage 4	12V DC
Output current	15 (3...20)A
Output current 2	4 (0...7)A
Output current 3	3 (0.4...6)A
Output current 4	0.7 (0...1)A
Supply voltage	90...264V AC, 127...370V DC
Weight	1.2kg
Electrical connection	terminal block
Protection	overload, overheating, voltage growth, short-circuit
Mounting	for building in
Number of outputs	4
Operating temperature	10...60°C
Body dimensions	215 x 115 x 50mm
Power supply/converter features	rated parameters obtained at full load
Series	QP-200
Efficiency	75%
Case type	912B
Additional functions	active PFC
Associated items	MHS-012

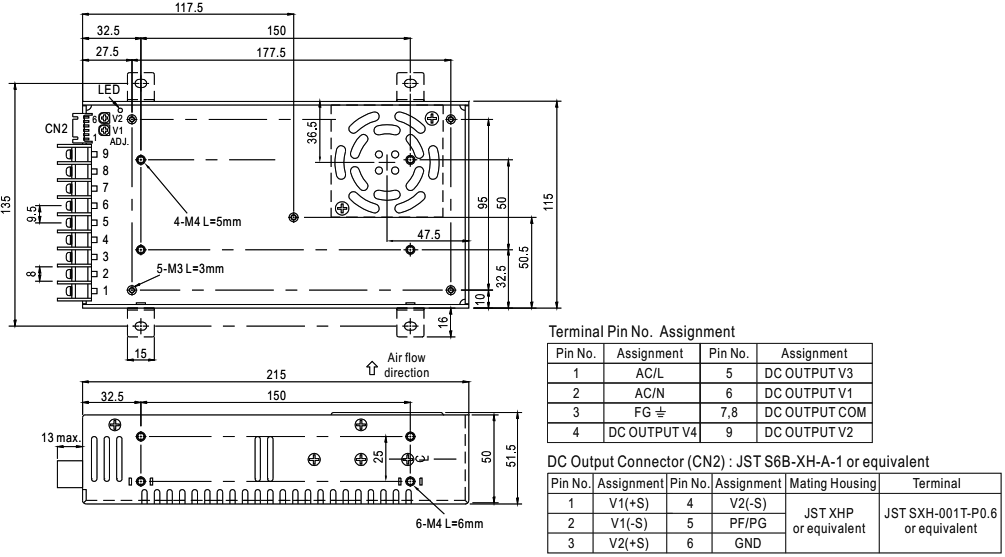

Dimensions	VIEW

Availability: With order
