Τροφοδοτικό Open Frame - Pwr sup.unit pulse, 201.6W, 127÷370VDC, 90÷264VAC, Outputs 5

Κωδικός: 17327

MPS-200-24 PDF

MPS-200-24

Τιμή χωρίς ΦΠΑ:  91.39 €
Αξία ΦΠΑ:  21.93 €
Τελική με ΦΠΑ:  113.33 €
Ποσότητα:
Προειδοποίηση Μεγάλος χρόνος παράδοσης
Specifications
Manufacturer MEAN WELL
Pwr sup. unit type switched-mode
Power 201.6W
Supply voltage 127...370V DC, 90...264V AC
Number of outputs 1
Output voltage 24V DC
Output current 8.4A
Kind of power supply open
Power supply/converter features rated parameters obtained at full load
Mounting for building in
Operating temperature 20...70°C
Protection overload, overheating, voltage growth, short-circuit
Weight 660g
Body dimensions 177.8 x 107.2 x 35.5mm
Efficiency 86%
Series MPS-200
Electrical connection plug with 3,96mm pitch

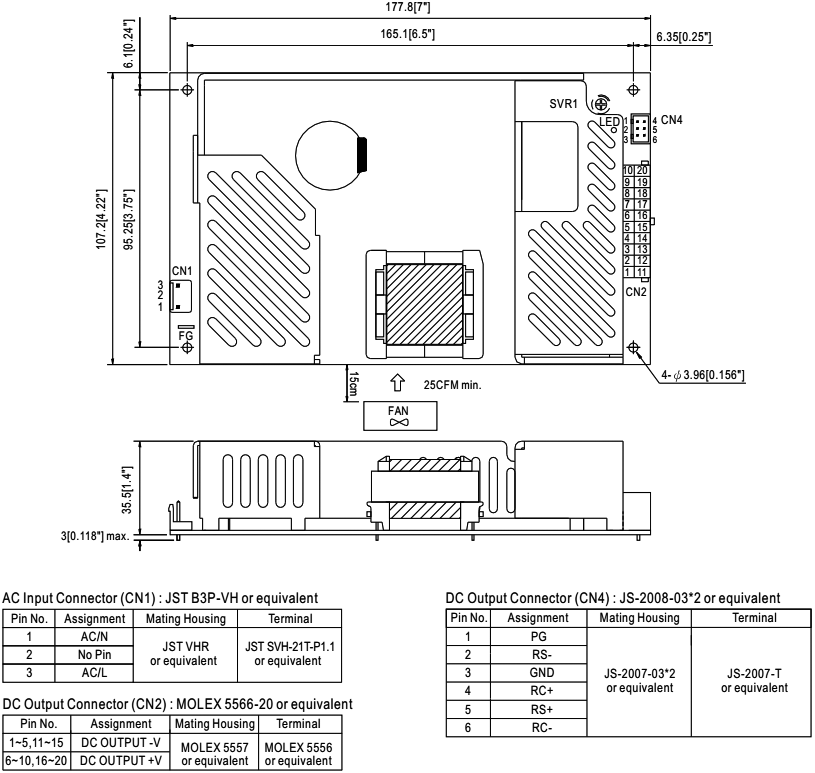

Dimensions  VIEW

Διαθεσιμότητα: Με παραγγελία
