power supplies - Pwr sup.unit pulse, 15W, 15VDC, 1A, 85÷264VAC, 120÷370VDC, 140g

Prod code: 16120

PM-15-15 PDF

PM-15-15

Price:  15.74 €
VAT:  3.78 €
Final price with tax:  19.51 €
Amount:
Warning Long delivery time
Specifications
Manufacturer MEAN WELL
Pwr sup. unit type switched-mode
Kind of power supply modular
Power 15W
Output voltage 15V DC
Output current 1A
Supply voltage 85...264V AC, 120...370V DC
Weight 140g
Electrical connection THT
Protection overload, voltage growth, short-circuit
Mounting PCB
Number of outputs 1
Operating temperature 20...70°C
Body dimensions 75 x 53 x 22.7mm
Series PM-15
Efficiency 79%
Case type 950A

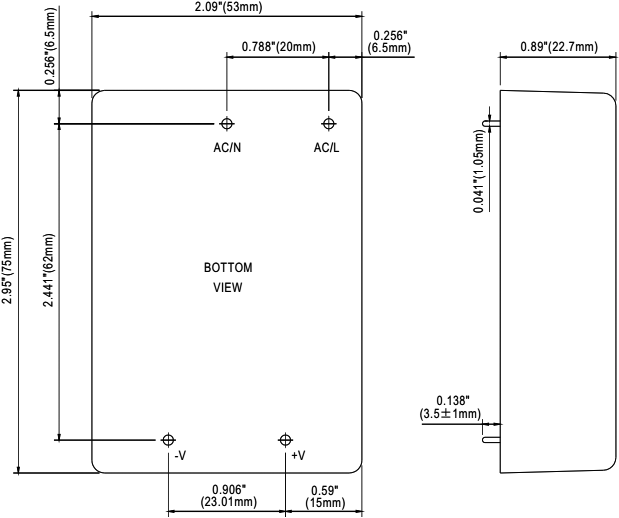

Dimensions  VIEW

Power supply/converter features:
  • no load power consumption <0,5W
  • rated parameters obtained at full load
Availability: With order
