Din rail power supply - Pwr sup.unit pulse, 120W, 48VDC, 2.5A, 88÷264VAC, 124÷370VDC, 670g

Prod code: 16023

SDR-120-48 PDF

SDR-120-48

Price:  56.92 €
VAT:  13.66 €
Final price with tax:  70.59 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer MEAN WELL
Pwr sup. unit type switched-mode
Power 120W
Output voltage 48V DC, 48...55V DC
Output current 2.5A
Supply voltage 88...264V AC, 124...370V DC
Electrical connection terminal block
Mounting DIN
Body dimensions 40 x 125.2 x 113.5mm
Weight 670g
Number of outputs 1
Operating temperature 25...70°C
Protection overload, overheating, overvoltage, short-circuit
Efficiency 90.5%
Additional functions active PFC, output voltage correctness indication (NO contact)
Power supply/converter features rated parameters obtained at full load
Series SDR-120
Case type 992A

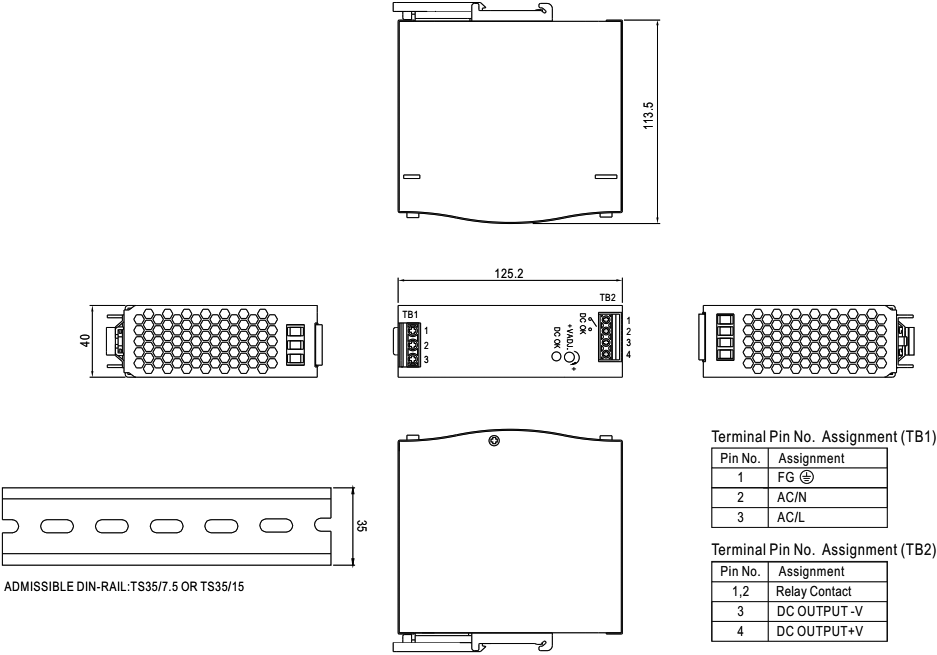

Dimensions  VIEW

Availability: With order
