Din rail power supply - Pwr sup.unit pulse, 120W, 48VDC, 2.5A, 340÷550VAC, 480÷780VDC

Prod code: 16009

DRH-120-48 PDF

DRH-120-48

Price:  50.13 €
VAT:  12.03 €
Final price with tax:  62.17 €
Amount:
Warning Long delivery time
Specifications
Manufacturer MEAN WELL
Pwr sup. unit type switched-mode
Power 120W
Output voltage 48V DC, 48...55V DC
Output current 2.5A
Supply voltage 340...550V AC, 480...780V DC
Electrical connection terminal block
Mounting DIN
Body dimensions 65.5 x 125.2 x 100mm
Weight 750g
Number of outputs 1
Operating temperature 20...60°C
Protection overload, overheating, overvoltage, short-circuit
Efficiency 86%
Power supply/converter features rated parameters obtained at full load
Series DRH-120
Case type 921A

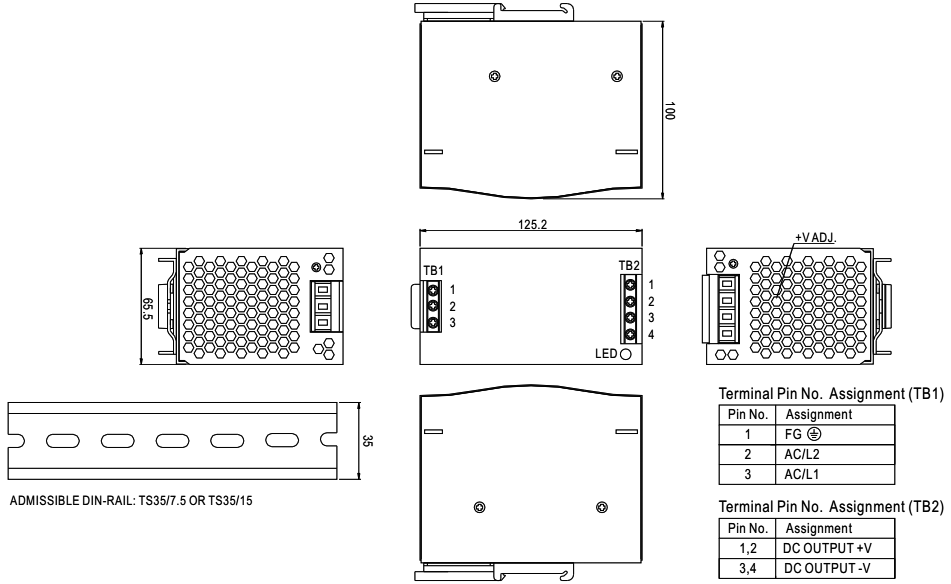

Dimensions  VIEW

Availability: With order
