Din rail power supply - Pwr sup.unit pulse, 120W, 12VDC, 10A, 180÷550VAC, 254÷780VDC, 650g

Prod code: 16035

WDR-120-12 PDF

WDR-120-12

Price:  64.04 €
VAT:  15.37 €
Final price with tax:  79.40 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer MEAN WELL
Pwr sup. unit type switched-mode
Power 120W
Output voltage 12V DC, 12...15V DC
Output current 10A
Supply voltage 180...550V AC, 254...780V DC
Electrical connection terminal block
Mounting DIN
Body dimensions 40 x 125.2 x 113.5mm
Weight 650g
Number of outputs 1
Operating temperature 25...70°C
Protection overload, overheating, overvoltage, short-circuit
Efficiency 89.5%
Power supply/converter features rated parameters obtained at full load
Series WDR-120
Case type 992B

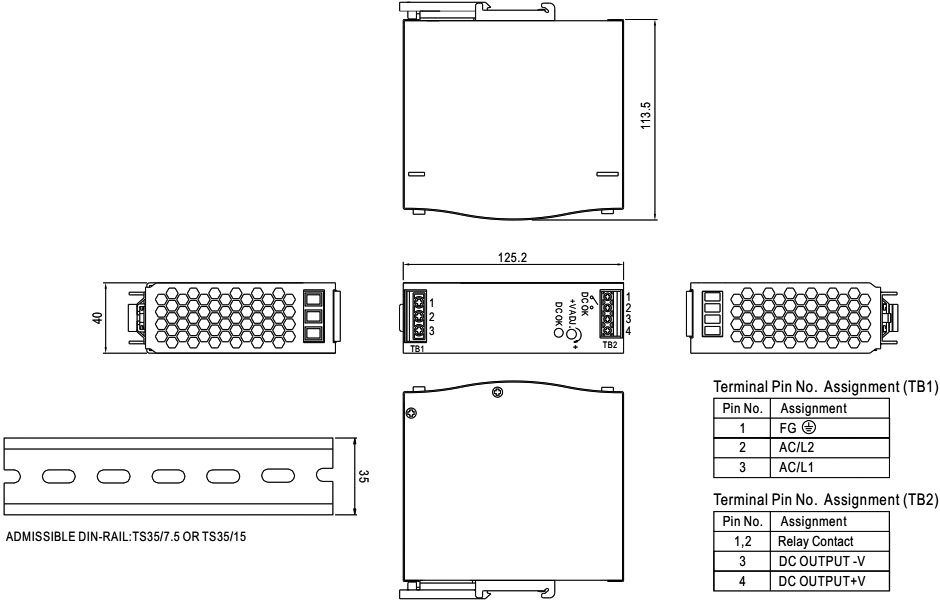

Dimensions  VIEW

Availability: With order
