power supplies - Pwr sup.unit pulse, 11.55W, 3.3VDC, 3.5A, 85÷264VAC, 120÷370VDC

Prod code: 16102

IRM-15-3.3 PDF

IRM-15-3.3

Price:  9.49 €
VAT:  2.28 €
Final price with tax:  11.77 €
Amount:
Warning Long delivery time
Specifications
Manufacturer MEAN WELL
Pwr sup. unit type switched-mode
Kind of power supply modular
Power 11.55W
Output voltage 3.3V DC
Output current 3.5A
Supply voltage 120...370V DC, 85...264V AC
Weight 59g
Electrical connection THT
Protection overload, voltage growth, short-circuit
Mounting PCB
Number of outputs 1
Operating temperature 30...70°C
Body dimensions 52.4 x 27.2 x 24mm
Series IRM
Efficiency 74%

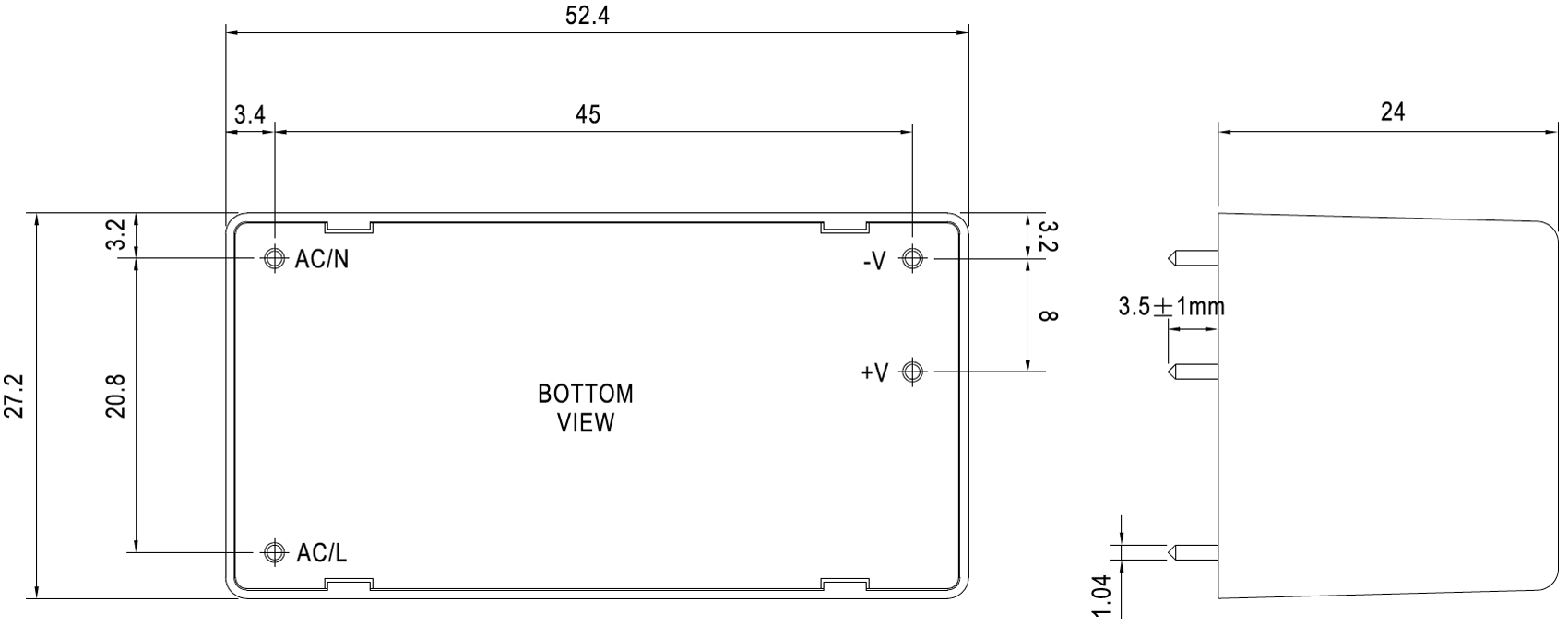

Dimensions  VIEW

Power supply/converter features:
  • no load power consumption <0,1W
  • rated parameters obtained at full load
Availability: With order
