Open Frame power supply - Power supply switched-mode, open, 40.5W, 127÷370VDC, 90÷264VAC

Prod code: 38687

MPT-45A PDF

MPT-45A

Price:  23.38 €
VAT:  5.61 €
Final price with tax:  28.99 €
Amount:
Warning Long delivery time
Specifications
Manufacturer MEAN WELL
Type of power supply switched-mode
Kind of power supply open
Power 40.5W
Supply voltage 90...264V AC,   127...370V DC
Number of outputs 3
Output current 3 (0.4...5)A
Output voltage 2 12V DC
Output current 2 2 (0.2...2.5)A
Output voltage 3 -5V DC
Output current 3 0.3 (0...5)A
Operating temperature -10...60°C
Mounting for building in
Efficiency 73%
Protection overload,   overvoltage,   short-circuit
Body dimensions 127x76x28mm
Electrical connection plug with 3,96mm pitch
Series MPT-45
Weight 210g
Application medical applications
Power supply/converter features multi output power supply - for operating properly, each channel must be loaded within specified range
Output voltage 5V DC

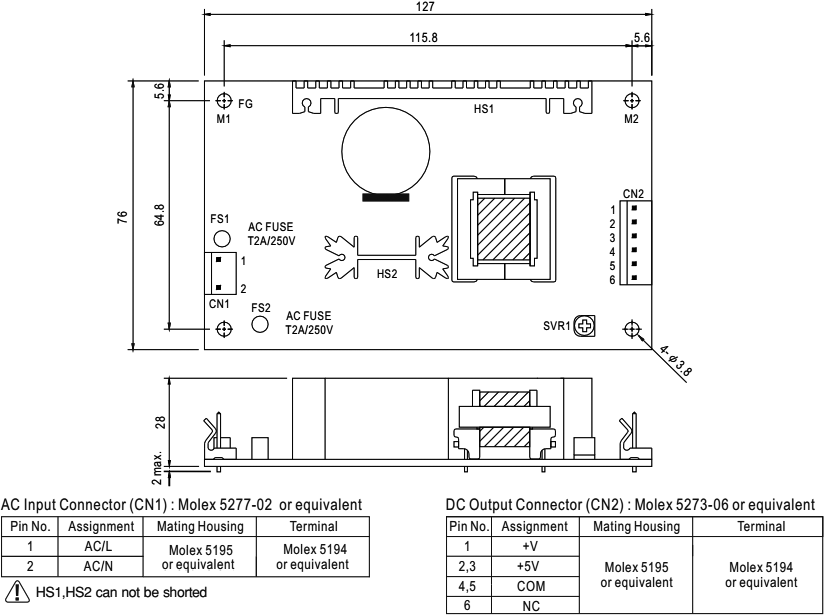

Dimensions  VIEW
Gross weight 214.3 g

Availability: With order
