Specifications |
Manufacturer |
MEAN WELL |
Type of power supply |
switched-mode |
Kind of power supply |
open |
Power |
150W |
Supply voltage |
90...264V AC,   127...370V DC |
Number of outputs |
1 |
Operating temperature |
-30...70°C |
Mounting |
for building in |
Efficiency |
92% |
Protection |
overheating,   overload,   short-circuit,   voltage growth |
Body dimensions |
101.6x50.8x29mm |
Electrical connection |
plug with 3,96mm pitch |
Series |
EPP-150 |
Weight |
200g |
Additional functions |
active PFC |
Maximum current |
3.13A |
Related items |
BVH-21T-P1.1,   SVH-200BK22,   VHR-3N,   VHR-4N |
Output voltage |
47.04...50.4V DC,   48V DC |

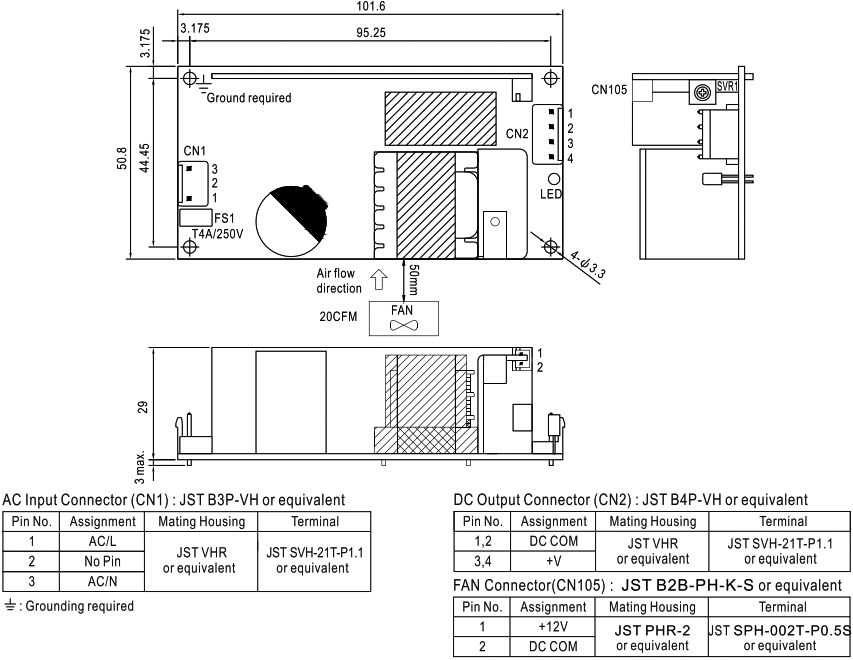

Dimensions |
VIEW |
Gross weight |
197.52 g |
|
Power supply/converter features
- no load power consumption <0,5W
- rated parameters obtained at full load
- the maximum current only with additional cooling
|
|
