Specifications |
Manufacturer |
MEAN WELL |
Type of power supply |
switched-mode |
Kind of power supply |
open |
Power |
120W |
Supply voltage |
80...264V AC,   113...370V DC |
Number of outputs |
1 |
Output current |
5A |
Operating temperature |
-30...70°C |
Mounting |
for building in |
Efficiency |
90% |
Protection |
overheating,   overload,   short-circuit,   voltage growth |
Body dimensions |
101.6x50.8x29mm |
Electrical connection |
plug with 3,96mm pitch |
Series |
RPS-120 |
Weight |
150g |
Application |
medical applications |
Output voltage |
22.8...25.2V DC,   24V DC |

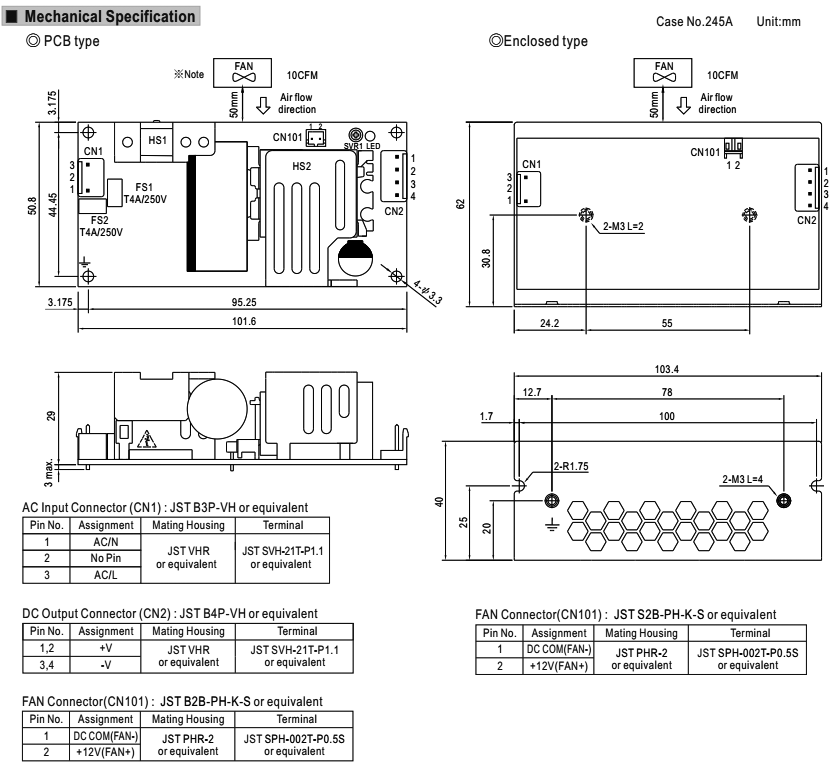

Dimensions |
VIEW |
Gross weight |
158.18 g |
|
Power supply/converter features
- no load power consumption <0,3W
- rated parameters obtained at full load
- the maximum current only with additional cooling
|
|
