Power supply switched-mode, modular, 624W, 48VDC, 13A, OUT 1, 89% - 135.80 EUR : acdcshop.gr


power supplies - Power supply switched-mode, modular, 624W, 48VDC, 13A, OUT 1, 89%	Prod code: 35879
PDF	HRP-600-48

Click to enlarge Power supply switched-mode, modular, 624W, 48VDC, 13A, OUT 1, 89%

Price:	135.80 €
VAT:	32.59 €
Final price with tax:	168.39 €
Amount:
Usually shipped within 2-3 business days.

Specifications
Manufacturer	MEAN WELL
Type of power supply	switched-mode
Kind of power supply	modular
Power	624W
Output current	13A
Number of outputs	1
Body dimensions	218x105x63.5mm
Weight	1.5kg
Operating temperature	-40...70°C
Electrical connection	terminal block
Mounting	for building in
Protection	overheating, overload, short-circuit, voltage growth
Efficiency	89%
Series	HRP-600
Kind of case	977A
Additional functions	active PFC
Supply voltage	85...264V AC, 120...370V DC
Power supply/converter features	rated parameters obtained at full load
Output voltage	40.8...55.5V DC, 48V DC

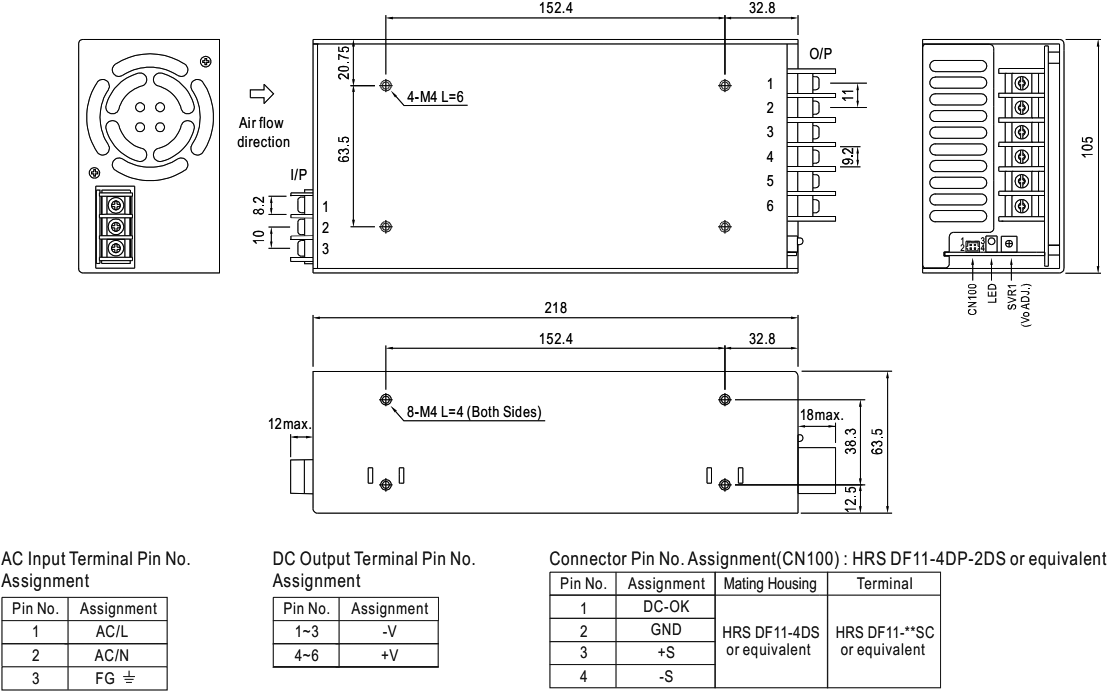

Dimensions	VIEW
Gross weight	1572.8 g

Availability: With order
