LED power supplies - Power supply switched-mode, LED, 60.2W, 25÷43VDC, 1400mA, IP30

Prod code: 36453

PLD-60-1400B PDF

PLD-60-1400B

Price:  24.87 €
VAT:  5.97 €
Final price with tax:  30.84 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer MEAN WELL
Type of power supply switched-mode
Application LED
Kind of power supply current source
Power 60.2W
Output voltage 25...43V DC
Output current 1400mA
Supply voltage 180...295V AC
IP rating IP30
Body dimensions 128x60x31.5mm
Protection overheating,   short-circuit
Weight 340g
Operating temperature -30...45°C
Electrical connection wires
Number of outputs 1
Additional functions active PFC
Series PLD-60
Efficiency 86%
Power supply/converter features rated parameters obtained at full load

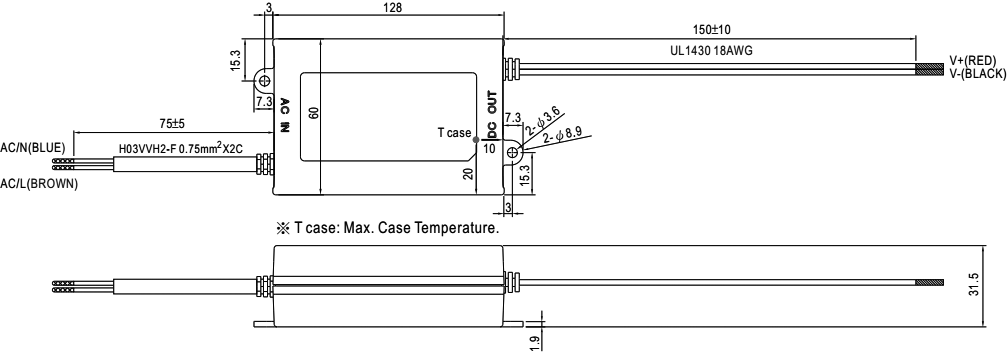

Dimensions  VIEW
Gross weight 318.3 g

Availability: With order
