Power supply switched-mode, LED, 10W, 30÷40VDC, 0.25A, 90÷264VAC - 27.14 EUR : acdcshop.gr


Τροφοδοτικό LED - Power supply switched-mode, LED, 10W, 30÷40VDC, 0.25A, 90÷264VAC	Κωδικός: 39108
PDF	AMEPR10D-4025AZ-UW

Κάντε Κλικ για Μεγέθυνση Power supply switched-mode, LED, 10W, 30÷40VDC, 0.25A, 90÷264VAC

Τιμή χωρίς ΦΠΑ:	27.14 €
Αξία ΦΠΑ:	6.51 €
Τελική με ΦΠΑ:	33.65 €
Ποσότητα:
* Αποστολή σε 2-3 εργάσιμες ημέρες.

Specifications
Manufacturer	AIMTEC
Type of power supply	switched-mode
Application	LED
Kind of power supply	current source
Power	10W
Output voltage	30...40V DC
Output current	0.25A
Supply voltage	90...264V AC
IP rating	IP67
Body dimensions	133x33x30mm
Protection	overheating, overload, short-circuit, voltage growth
Weight	200g
Operating temperature	-20...80°C
Electrical connection	100mm wires
Number of outputs	1
Additional functions	active PFC
Series	AMEPR
Efficiency	80%
Power supply/converter features	rated parameters obtained at full load

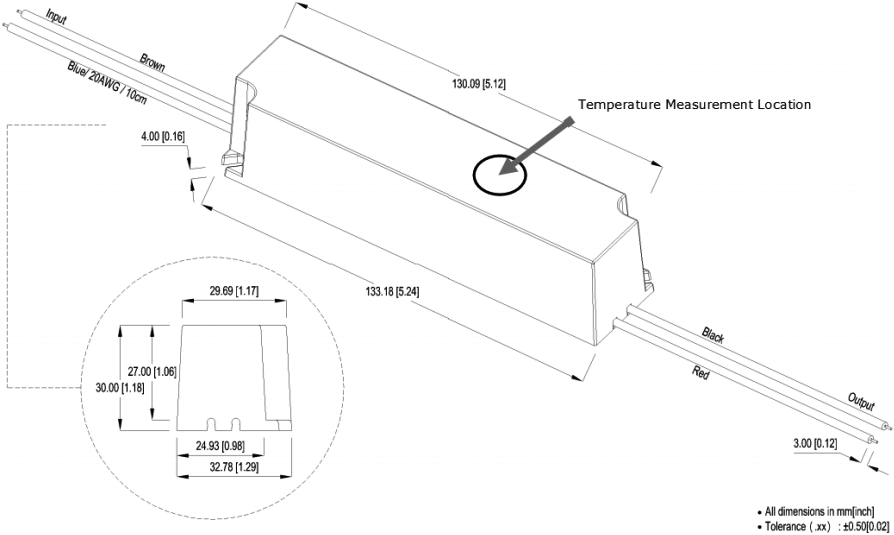

Dimensions	VIEW
Gross weight	207.5 g

Διαθεσιμότητα: Με παραγγελία
