Specifications |
Manufacturer |
XP POWER |
Type of power supply |
switched-mode |
Power |
30W |
Number of outputs |
3 |
Output current |
3A |
Output voltage 2 |
15V DC |
Output current 2 |
500mA |
Output voltage 3 |
-15V DC |
Output current 3 |
500mA |
Operating temperature |
-20...70°C |
Mounting |
M3 screw,   mounting holes |
Efficiency |
81% |
Protection |
anti-overload OPP,   anti-overvoltage OVP,   short circuit protection SCP |
Body dimensions |
87.9x34.6x25.4mm |
Electrical connection |
connector with snap lock |
Manufacturer series |
ECL |
Weight |
60g |
Power consumption without load |
<0.3W |
Switching frequency |
70kHz |
Insulation voltage |
3kV |
Output voltage |
5V DC |

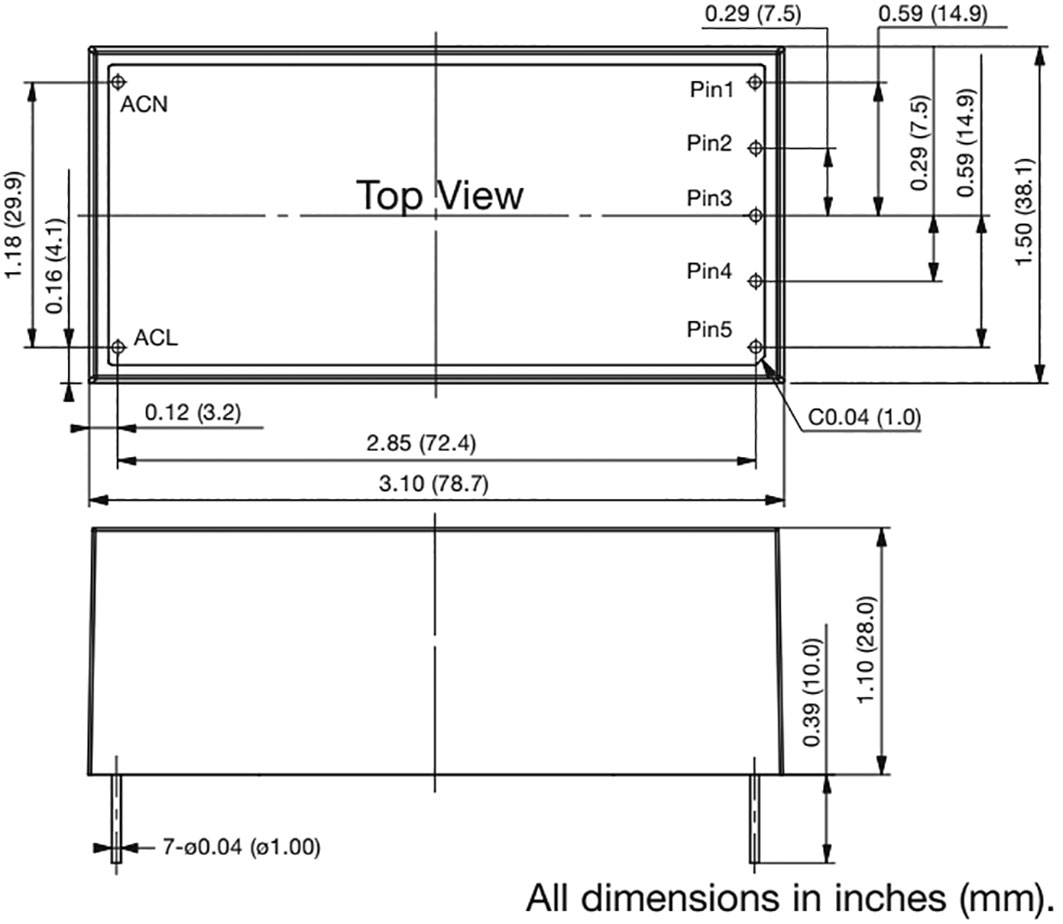

Dimensions |
VIEW |
Gross weight |
57.9 g |
|
Supply voltage
- 85...264V AC
- 120...370V DC
|
|
