Resistor Variable - Potentiometer shaft, single turn, 4.7kÙ, 3W, ±20%, 6mm, linear

Prod code: 38715

PE304.7K PDF

PE304.7K

Price:  21.79 €
VAT:  5.23 €
Final price with tax:  27.01 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer VISHAY
Type of potentiometer shaft
Kind of potentiometer single turn
Resistance 4.7kΩ
Power 3W
Tolerance ±20%
Shaft diameter 6mm
Characteristics linear
Mounting on panel
Shaft surface smooth
Leads for soldering
Shaft length 38mm
Electrical rotation angle 270 ±10°
Operating temperature -55...125°C
Temperature coefficient 150ppm/°C
Max. operating voltage 300V
Track material cermet
Thread length 12mm
L shaft length 50mm
IP rating IP67
Min. insulation resistance 1000000MΩ
Mechanical rotation angle 300 ±5°

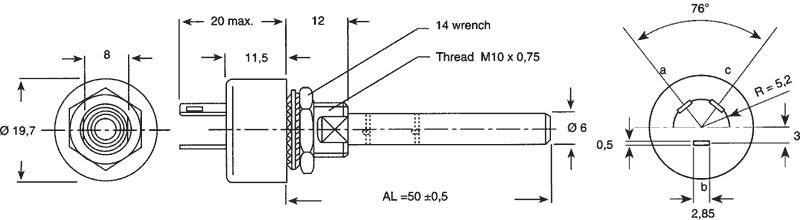

Dimensions  VIEW
Gross weight 28.7 g

Potentiometer features
  • for industrial use
  • for military use
Availability: With order
