Potentiometer shaft, single turn, 10kΩ, 1W, ±10%, 6.35mm, THT

Κωδικός: 35401

149-10K PDF

149-10K

Τιμή χωρίς ΦΠΑ:  8.61 €
Αξία ΦΠΑ:  2.07 €
Τελική με ΦΠΑ:  10.68 €
Ποσότητα:
* Αποστολή σε 2-3 εργάσιμες ημέρες.
Specifications
Manufacturer VISHAY
Type of potentiometer shaft
Kind of potentiometer single turn
Resistance 10kΩ
Power 1W
Tolerance ±10%
Shaft diameter 6.35mm
Mounting THT
Shaft surface smooth
Body dimensions 12.5x12.5x8.8mm
Potentiometer series 149
Electrical rotation angle 270 ±10°
Operating temperature -40...150°C
Temperature coefficient 150ppm/°C
Potentiometer features for industrial use
Electrical life 25000cycles
Potentiometer standard 12,5mm
Max. operating voltage 350V AC
Track material cermet
Linearity tolerance ±5%

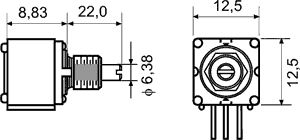

Dimensions  VIEW
Gross weight 12.314 g

Διαθεσιμότητα: Με παραγγελία
