Multiturn pot - Potentiometer shaft multiturn 100kΩ 2W ±5% 6.35mm Series 534

Prod code: 15403

534-100K PDF

534-100K

Price:  18.76 €
VAT:  4.50 €
Final price with tax:  23.26 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer VISHAY
Potentiometer type shaft
Potentiometer kind multiturn
Resistance 100kÙ
Power 2W
Tolerance 5%
Shaft diameter 6.35mm
Body dimensions 22.22 x 19mm
Potentiometer series 534
Track material wirewound
Number of electrical turns 10
Shaft length 12.7mm
Potentiometer features precise
Linearity tolerance 0.25%
Operating temperature 55...125°C
Shaft surface smooth
Min. insulation resistance 1000MÙ
Thread length 8mm
Temperature coefficient 20ppm/°C

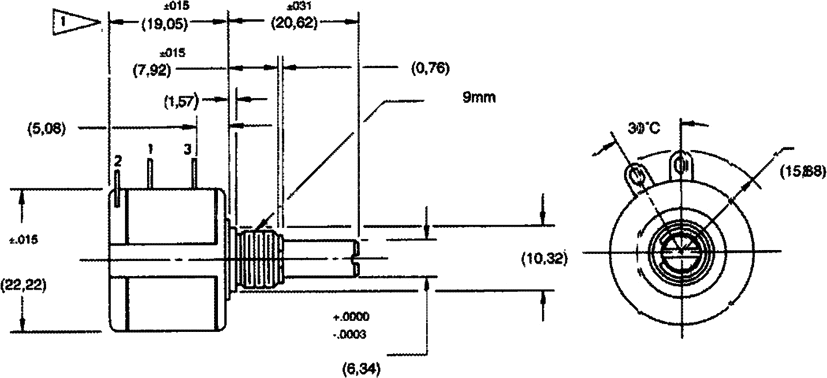

Dimensions  VIEW

Availability: With order
