Specifications |
| Manufacturer |
PIHER |
| Potentiometer type |
mounting |
| Potentiometer kind |
single turn, vertical |
| Resistance |
250kΩ |
| Power |
150mW |
| Tolerance |
20% |
| Characteristics |
linear |
| Potentiometer series |
PT10LH |
| Potentiometer standard |
10mm |
| Mechanical rotation angle |
235 ±5° |
| Torque |
0,4...2Ncm |
| Max. operating voltage |
200V |
| Operating temperature |
25...70°C |
| Mounting |
THT |
| Terminal pitch |
5x2.5mm |
| Track material |
carbon |
| Electrical rotation angle |
220 ±20° |
| Body dimensions |
10.3 x 4.5mm |
| Potentiometer features |
rectangle hole suitable for screwdriver |

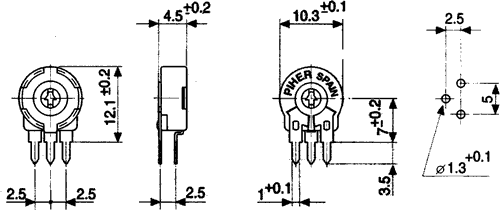

| Dimensions |
 VIEW |
| |
|
