Specifications |
| Manufacturer |
PIHER |
| Type of potentiometer |
mounting |
| Kind of potentiometer |
horizontal, single turn |
| Resistance |
50kΩ |
| Power |
100mW |
| Tolerance |
±20% |
| Characteristics |
linear |
| Potentiometer series |
PT6LV |
| Potentiometer standard |
6mm |
| Mechanical rotation angle |
235 ±5° |
| Torque |
0,2...2Ncm |
| Max. operating voltage |
100V |
| Operating temperature |
-25...70°C |
| Mounting |
THT |
| Terminal pitch |
5x5mm |
| Track material |
carbon |
| Electrical rotation angle |
220 ±20° |
| Body dimensions |
Ø6.3x3.3mm |

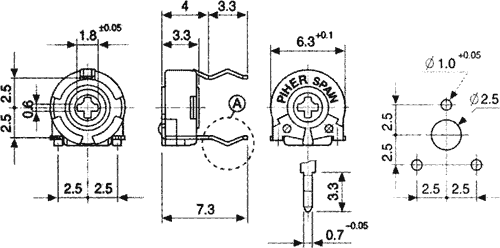

| Dimensions |
 VIEW |
| Gross weight |
0.212 g |
| |
|
