Specifications |
Manufacturer |
VISHAY |
Potentiometer type |
mounting |
Potentiometer kind |
single turn, horizontal |
Resistance |
100kΩ |
Power |
500mW |
Tolerance |
10% |
Characteristics |
linear |
Potentiometer series |
T73RYP |
Potentiometer standard |
1/4" |
Mechanical rotation angle |
290 ±5° |
Torque |
2Ncm |
Max. operating voltage |
250V |
Operating temperature |
55...125°C |
Mounting |
THT |
Terminal pitch |
2.54x2.54mm |
Track material |
cermet |
Electrical rotation angle |
250 ±15° |
Temperature coefficient |
100ppm/°C |
Potentiometer features |
clear scale reading |
Sealing |
IP67 |

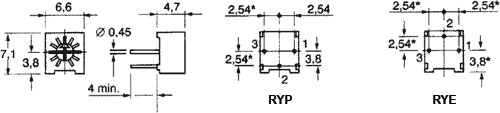

Dimensions |
VIEW |
|
|
