Specifications |
Manufacturer |
PIHER |
Type of potentiometer |
mounting |
Kind of potentiometer |
horizontal,   single turn |
Resistance |
100kΩ |
Power |
250mW |
Tolerance |
±20% |
Characteristics |
linear |
Potentiometer series |
PT15NV |
Potentiometer standard |
15mm |
Mechanical rotation angle |
265 ±5° |
Torque |
0,5...2,5Ncm |
Max. operating voltage |
250V |
Operating temperature |
-25...70°C |
Mounting |
THT |
Terminal pitch |
12.5x10mm |
Track material |
carbon |
Electrical rotation angle |
250 ±20° |
Body dimensions |
Ø15x6mm |

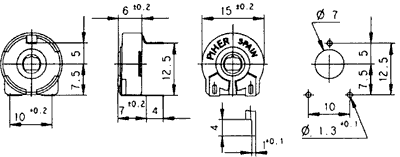

Dimensions |
VIEW |
Gross weight |
1.302 g |
|
|
