Specifications |
| Manufacturer |
ACP |
| Type of potentiometer |
mounting |
| Kind of potentiometer |
single turn |
| Resistance |
2.5kΩ |
| Power |
100mW |
| Mounting |
SMD |
| Tolerance |
±20% |
| Characteristics |
linear |
| Body dimensions |
6.5x6.5x3.6mm |
| Operating temperature |
-25...70°C |
| Track material |
carbon |
| Electrical rotation angle |
215 ±20° |
| Mechanical rotation angle |
235 ±10° |
| Mechanical durability |
1000 cycles |
| Torque |
<2Ncm |
| Potentiometer standard |
6mm |
| Max. operating voltage |
100V DC |
| Kind of package |
bag |

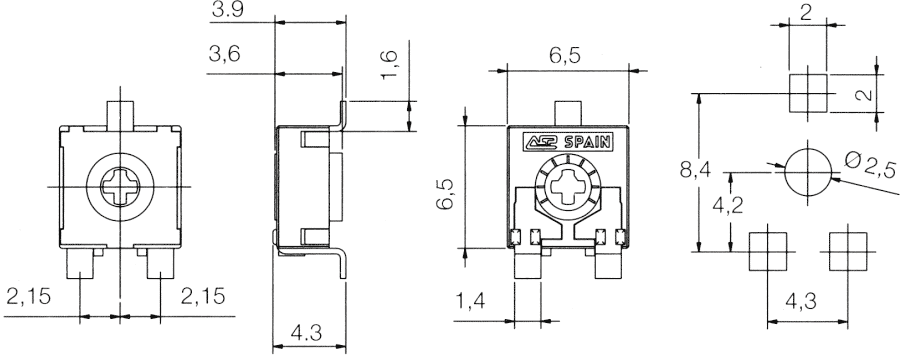

| Dimensions |
 VIEW |
| Gross weight |
0.287 g |
| |
|
