Specifications |
Manufacturer |
ACP |
Potentiometer type |
mounting |
Potentiometer kind |
single turn |
Resistance |
100kΩ |
Power |
100mW |
Mounting |
SMD |
Tolerance |
25% |
Characteristics |
linear |
Body dimensions |
6.5 x 6.5 x 3.6mm |
Operating temperature |
25...70°C |
Track material |
carbon |
Electrical rotation angle |
215 ±20° |
Mechanical rotation angle |
235 ±10° |
Torque |
2Ncm |
Potentiometer standard |
6mm |
Max. operating voltage |
100V DC |
Mechanical durability |
1000cycles |

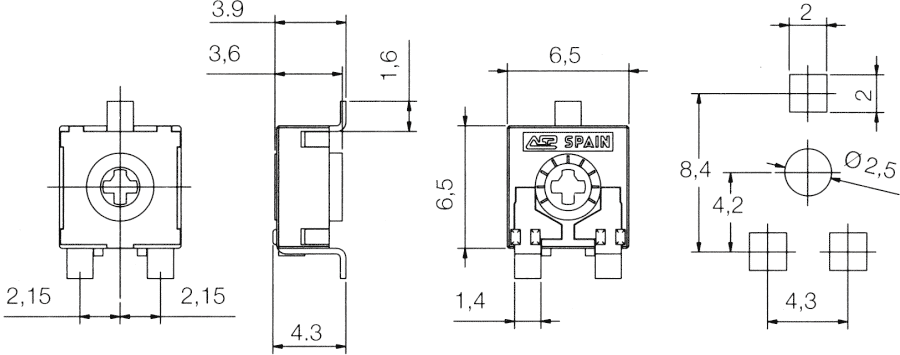

Dimensions |
VIEW |
|
|
