Specifications |
Manufacturer |
VISHAY |
Type of potentiometer |
mounting |
Resistance |
470Ω |
Power |
250mW |
Number of mechanical turns |
15 ±5 |
Tolerance |
±10% |
Characteristics |
linear |
Potentiometer series |
T63YB |
Body dimensions |
6.8x6.8x5mm |
Potentiometer standard |
1/4" |
Mounting |
THT |
Operating temperature |
-55...155°C |
Temperature coefficient |
100ppm/°C |
Number of electrical turns |
13 ±2 |
Track material |
cermet |
Terminal pitch |
2.5x2.5mm |
Max. operating voltage |
250V |
IP rating |
IP67 |
Torque |
1Ncm |
Schematic diagram |
VIEW |

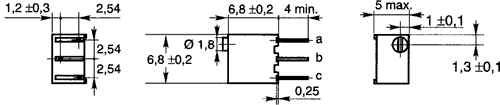

Dimensions |
VIEW |
Gross weight |
0.4 g |
|
|
