Terminal Blocks - Pluggable terminal block plug female 3.5mm screw terminals

Prod code: 12117

TBW-3.5-AMP-3P PDF

TBW-3.5-AMP-3P

Price:  2.28 €
VAT:  0.55 €
Final price with tax:  2.83 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer TE Connectivity
Connector type pluggable terminal block
Connector plug
Connector type female
Contacts pitch 3.5mm
Number of ways 3
Rated current 11A
Flammability rating UL94V-0
Wire size 14...30AWG
Colour green
Rated voltage 300V
Body material polyamide
Electrical mounting screw terminal
Mechanical mounting for cable
Length 10.5mm
Height 11.1mm
Operating temperature 40...105°C
Depth 15.5mm

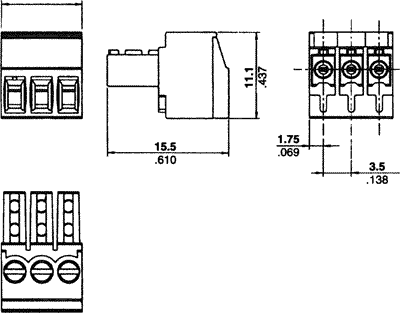

Dimensions  VIEW

Availability: On stock
