Specifications |
| Manufacturer |
TE Connectivity |
| Type of connector |
pluggable terminal block |
| Contacts pitch |
5.08mm |
| Number of ways |
2 |
| Spatial orientation |
angled 90° |
| Connector |
socket |
| Kind of connector |
male |
| Mechanical mounting |
on PCBs |
| Electrical mounting |
THT |
| Colour |
green |
| Rated voltage |
250V |
| Current rating |
12A |
| Type of pin configuration |
1x2 |
| Body material |
polyamide |
| Locking system |
friction lock |
| Flammability rating |
UL94V-0 |
| Conform to the norm |
CSA, UL, VDE |
| Contact plating |
tinned |
| Operating temperature |
-40...110°C |
| Contact material |
phosphor bronze |
| Number of pins |
2 |
| Connector variant |
without side walls |
| Height |
8.35mm |
| Connectors features |
assembling possibility |
| Length |
10.16mm |

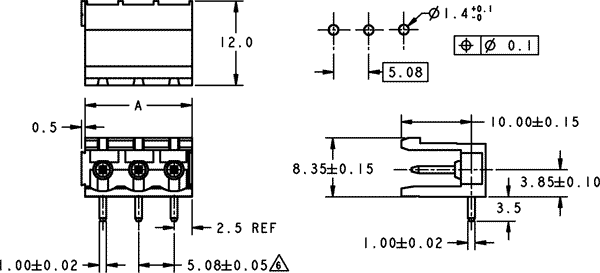

| Dimensions |
 VIEW |
| Gross weight |
0.74 g |
| |
|
