Terminal Blocks - PCB terminal block, angled 90°, 7.5mm, ways 3, on PCBs, 2.5mm2

Κωδικός: 40960

dg300-7.5.pdf PDF

DG300-7.5-3P11

Τιμή χωρίς ΦΠΑ:  0.50 €
Αξία ΦΠΑ:  0.12 €
Τελική με ΦΠΑ:  0.62 €
Ποσότητα:
* Αποστολή σε 1 εργάσιμη ημέρα.
Specifications
Manufacturer DEGSON ELECTRONICS
Type of connector PCB terminal block
Spatial orientation angled 90°
Contacts pitch 7.5mm
Number of ways 3
Mechanical mounting on PCBs
Electrical mounting screw terminal, THT
Wire cross-section 2.5mm2
Wire size 22AWG...14AWG
Connector terminal
Contact plating tinned
Current rating 24A
Height 12.6mm
Colour grey
Rated voltage 300V
Body material PBT
Connectors features assembling possibility
Length 22.5mm
Contact material brass
Operating temperature -30...120°C
Depth 9mm
Flammability rating UL94V-0
Connector pinout layout 1x3

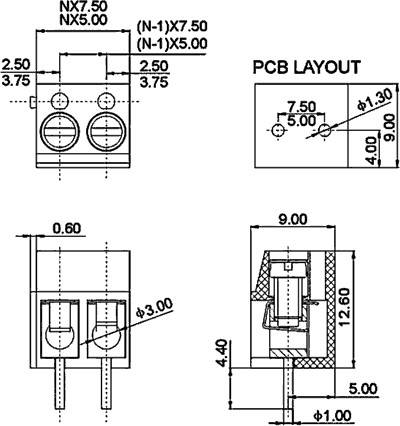

Dimensions  VIEW

Διαθεσιμότητα: Αμεσα
