Limit Switch - Limit switch with parallel metal roller dia 12,4mm

Κωδικός: 9629

AH8112 PDF

AH8112

Κάντε Κλικ για Μεγέθυνση
Limit switch with parallel metal roller dia 12,4mm
Τιμή χωρίς ΦΠΑ:  14.94 €
Αξία ΦΠΑ:  3.58 €
Τελική με ΦΠΑ:  18.52 €
Ποσότητα:
* Αποστολή σε 1 εργάσιμη ημέρα.
Specifications
Manufacturer HIGHLY
Sensor type limit switch
Actuator type oblong metal roller O12,4mm
Output configuration NO + NC
Contact current max. 5A
Switched voltage max 250V AC
Connection grommet
Sealing IP64
Body dimensions 64 x 28 x 25mm
Operating temperature 25...70°C
Body material metal, plastic
Switches features snap action contacts
AC contacts rating 5 A / 125 VAC

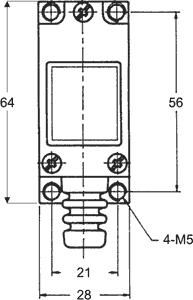

Dimensions  VIEW

Διαθεσιμότητα: Αμεσα
