Specifications |
Manufacturer |
OMRON |
Type of sensor |
limit switch |
Kind of actuator |
lever R 26mm, plastic roller Ø17,5mm |
Output configuration |
NO + NC |
Contact current max. |
10A |
Switched voltage |
max. 240V AC,   max. 250V DC |
Connection |
PG13,5 |
IP rating |
IP65 |
Body dimensions |
64x31x30mm |
Number of mounting holes |
2 |
Operating temperature |
-30...70°C |
Body material |
plastic |
AC contacts rating @R |
3A / 240V AC |
DC contacts rating @R |
0.55A / 125V DC |
Switching frequency max |
2Hz |
Mounting holes pitch |
20...22mm |
Switches features |
snap action contacts |

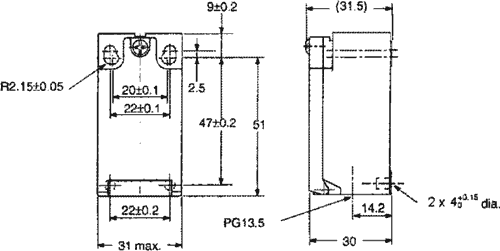

Dimensions |
VIEW |
Gross weight |
106.2 g |
|
|
