Specifications |
| Manufacturer |
TALEMA |
| Inductor type |
wire |
| Mounting |
THT |
| Inductor kind |
toroidal, common mode |
| Inductance of individual winding |
10mH |
| Number of windings |
2 |
| Operating current |
1.2A |
| Resistance |
285mΩ |
| Operating voltage |
250V AC |
| Inductor application |
mains filters |
| Test voltage AC |
1.5kV |
| Operating temperature |
40...125°C |
| Terminal pitch |
12.5x10mm |
| Tolerance |
±30% |
| Test frequency |
10kHz |

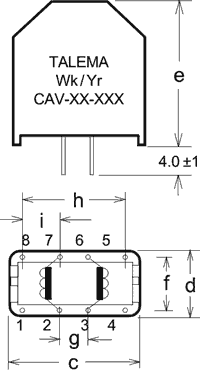

| C dimension |
23mm |
| D dimension |
15.5mm |
| E dimension |
25mm |
| F dimension |
12.5mm |
| Dimension G |
10mm |
| H dimension |
20mm |
| I dimension |
5mm |
| Spatial orientation |
vertical |
| Dimensions |
 VIEW |
| |
|
