Αισθητήριο Υγρασίας - Humidity and temperature sensor, case SMD, 4pin _0.4°

Κωδικός: 9617

SHT11 PDF

SHT11

Τιμή χωρίς ΦΠΑ:  19.80 €
Αξία ΦΠΑ:  4.75 €
Τελική με ΦΠΑ:  24.55 €
Ποσότητα:
Προειδοποίηση Μεγάλος χρόνος παράδοσης
Specifications
Manufacturer SENSIRION
Sensor type temperature and humidity sensor
Measuring range 0...100% RH
Supply voltage 2.4...5.5V DC
Case SMD4
Interface Digital SBUS
Temperature measurement accuracy 0,4°C
Humidity measuring accuracy 3%
Temperature measuring range 40...125°C
Associated items SENSIRION-SF1

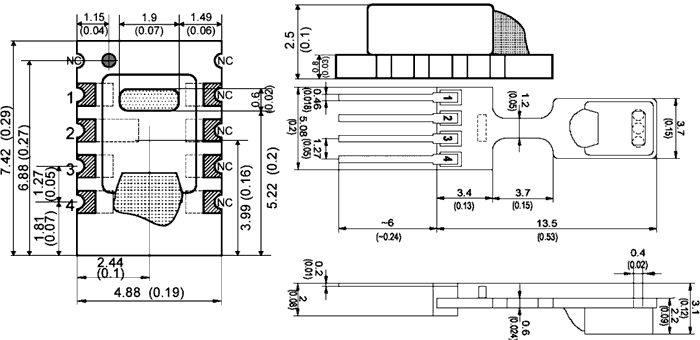

Dimensions  VIEW

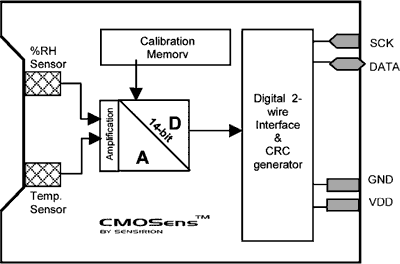

Schematic diagram  VIEW

Διαθεσιμότητα: Με παραγγελία
