Ψυγεία IC - Heatsink 3,8K/W series PR90 37.5mm

Κωδικός: 7828

PR90/37/SE/UL PDF

PR90/37/SE/UL

Τιμή χωρίς ΦΠΑ:  8.55 €
Αξία ΦΠΑ:  2.05 €
Τελική με ΦΠΑ:  10.60 €
Ποσότητα:
Προειδοποίηση Μεγάλος χρόνος παράδοσης
Specifications
Manufacturer ALUTRONIC
Heatsink type extruded
Application TO3
Colour black
Length 37.5mm
Width 97mm
Height 25mm
Thermal resistance 3.8K/W
Material aluminium
Material finishing anodized
Active surface 246cm2
Weight 74g
Plate thickness 4mm

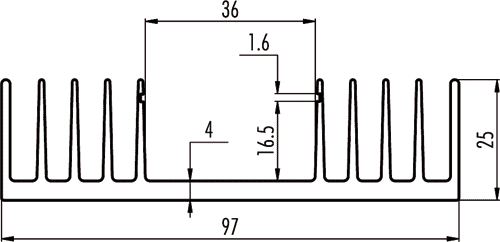

Dimensions  VIEW

Διαθεσιμότητα: Με παραγγελία
