Κρυσταλλικός Ταλαντωτής - Generator quartz, 8MHz, SMD, 3.3V, ±50ppm, 0÷70°C, 7.2x5.2x1.8mm

Κωδικός: 39394

CFPS-73-8M PDF

CFPS-73-8M

Τιμή χωρίς ΦΠΑ:  2.37 €
Αξία ΦΠΑ:  0.57 €
Τελική με ΦΠΑ:  2.94 €
Ποσότητα:
* Αποστολή σε 2-3 εργάσιμες ημέρες.
Specifications
Manufacturer IQD FREQUENCY PRODUCTS
Type of generator quartz
Frequency 8MHz
Mounting SMD
Frequency stability ±50ppm
Operating temperature 0...70°C
Body dimensions 7.2x5.2x1.8mm
Output load type 15pF,   HCMOS
Pulse symmetry 45/55%
Generators features fitted with disabling function (high impedance state)
Operating voltage 3.3V

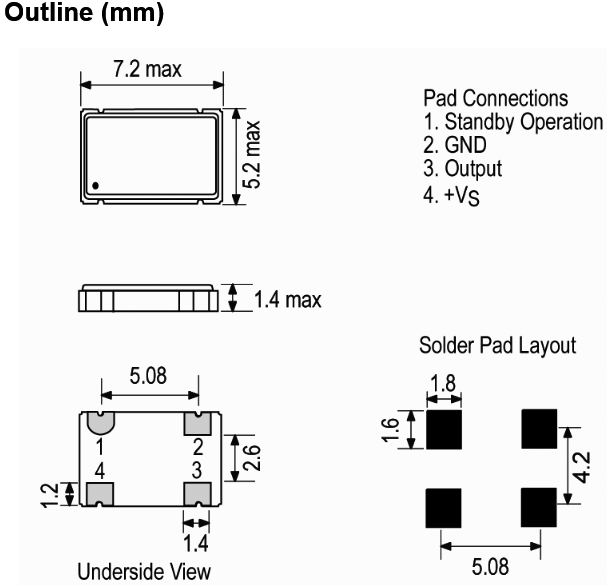

Dimensions  VIEW
Gross weight 0.24 g

Διαθεσιμότητα: Με παραγγελία
