Αισθητήριο Στάθμης - Αισθητήριο στάθμης νερού Υδροστατικής πίεσης Gavin

Κωδικός: 19837

GLT500

Τιμή χωρίς ΦΠΑ:  232.00 €
Αξία ΦΠΑ:  55.68 €
Τελική με ΦΠΑ:  287.68 €
Ποσότητα:
* Αποστολή σε 1 εργάσιμη ημέρα.
Specifications
GLT500 Model Submersible Water Level Transmitter
1.pressure range: 0~1mH2O...200mH2O
2.flexible submersible measurement

Description
GLT500 level transmitter has the special structure and applications It has high accuracy, small volume,stability,plus resistance to abrasion,oil,acid&alkali and high intensity gas lead cable ensured that it can meet the different occasions measurement requirements. It is widely used in sewage, river and lakes treatment as well as channel, large rivers, l reservoirs and coastline monitoring.This product has got intrinsic safety certification,explosion proof certification and CE certification. The lead of two-wire circumfluent is no-polarity .

Feature :
Water level measurement range: 0~5m H2O
Accuracy : ±0.5%
Voltage : 12V DC
Output : 0-5 VDC (1V = 1meter)

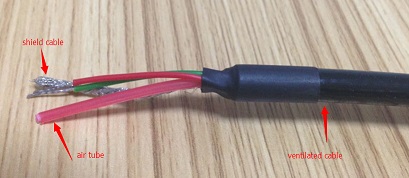

Cable length : 6m
Dimension : φ28 x 100

Explosion proof certificaiton

Applications:

deep well level measurement hydraulic monitoring in rivers and sea sewage treatment muddy liquid level measuremen  liquid reservoir level measurement water saving irrigationg water diversion project


Διαθεσιμότητα: Αμεσα
