Specifications |
Manufacturer |
ECE |
Fuse type |
PTC polymer |
Rated current |
2A |
Max surge current |
20A |
Switched current |
4A |
Voltage max. |
240V AC |
Power |
4.5W |
Min. resistance |
90mΩ |
Max resistance |
220mΩ |

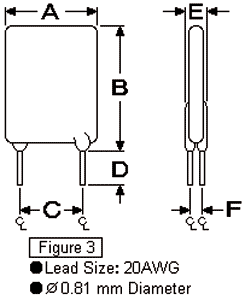

A dimension |
24.9mm |
B dimension |
33.8mm |
C dimension |
10.2mm |
D dimension |
7.6mm |
E dimension |
6.1mm |
Operating temperature |
40...85°C |
Leads dimensions |
0.81 x 7.6mm |
Dimensions |
VIEW |
|
|
