Fuse - Fuse fuse, gG, 125A, 500VAC, 440VDC, ceramic,industrial, NH1

Prod code: 39878

NH1-125 PDF

NH1-125

Price:  6.69 €
VAT:  1.61 €
Final price with tax:  8.29 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer SIBA
Type of fuse fuse
Fuse characteristics gG
Breaking capacity 120kA
Current rating 125A
Rated voltage 440V DC,   500V AC
Kind of fuse ceramic,   industrial
Fuse size NH1
Fuses features fuse blown indicator
Power dissipation 10W
F dimension 8mm
Weight 280g
A1 dimension 135mm
B1 dimension 20mm
C1 dimension 40mm
E1 dimension 46mm
E2 dimension 29.5mm
A5 dimension 65mm
E4 dimension 6mm

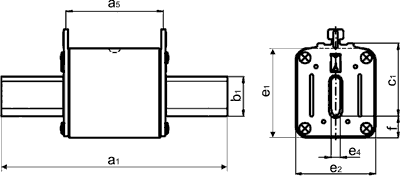

Dimensions  VIEW
Gross weight 279.4 g

Availability: With order
