Specifications |
Manufacturer |
SUNON |
Fan type |
AC |
Fan kind |
axial |
Supply voltage |
115V AC |
Fan dimensions |
176x176x89mm |
Power consumption |
24W |
Rated current |
250mA |
Fans efficiency |
535 (±10%)m3/h |
Noise level |
62dBA |
Bearing type |
ball bearing |
Rotational rate/speed |
2800rpm |
Weight |
1.96kg |
Current and power consumption tolerance |
15% |
Frequency |
50Hz |
Min. insulation resistance |
500MΩ |
Fan material |
thermoplastic |
Enclosure material |
aluminium |
Insulation class |
B |
Operating temperature |
10...70°C |
Leads |
2.8x0.3mm connectors |
Static pressure |
16.5mm H2O |
Flammability rating |
UL94V-0 |
Fan motor |
Alveolate type motor with running capacitor |

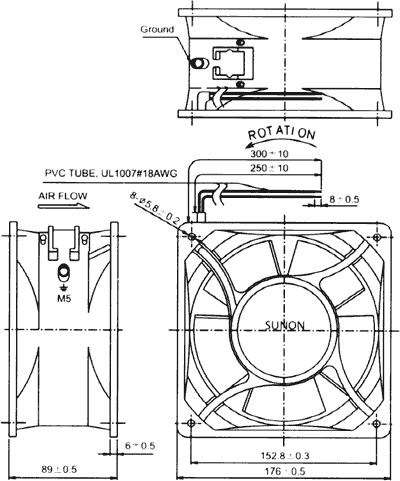

Dimensions |
VIEW |
|
|
