Encoder - Encoding switch Encoding switch type HEX/BCD Positions 16

Prod code: 14808

ERD216RSZ PDF

ERD216RSZ

Price:  2.85 €
VAT:  0.69 €
Final price with tax:  3.54 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer ECE
Switch type encoding switch
Encoding switch type HEX/BCD
Stable positions number 16-position
Number of positions 16
Operating temperature 25...70°C
Mounting THT
Leads for PCB
Max. contact resistance: 100mÙ
DC contacts rating 0.1 A / 50 VDC
Min. insulation resistance 1000MÙ
Terminal pitch 2.54mm
Switches features with knob
Switching torque 5Ncm
Body dimensions 10 x 10 x 5mm
Flammability rating UL94V-0
Soldering temperature 260°C / 5 s
Contact material copper alloy
Contact plating gold plated

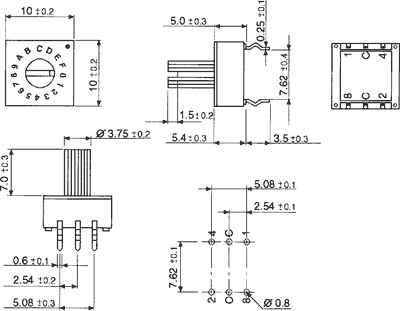

Dimensions  VIEW

Availability: On stock
