Transformers PCB - Encapsulated trafo, PCB mount, 12VA, 230/12V, 1A

Prod code: 9793

TSZZ10/12V PDF

TSZZ10/12V

Price:  6.81 €
VAT:  1.63 €
Final price with tax:  8.44 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer INDEL
Transformer type encapsulated
Power 12VA
Primary voltage 230V AC
Secondary voltage 1 12V
Secondary winding current 1 1A
Mounting PCB
Pri./sec. insulation strength 4kV/60s
Sealing IP00
Conform to the norm PN-EN 61558
Thermal class Ta40B
Secondary winding terminals 8-11
Primary winding terminals 1-6
Insulation class II
Weight 450g
A dimension 52mm
A1 dimension 35.6mm
B dimension 44mm
B1 dimension 34.6mm
C dimension 34.6mm
C1 dimension 27.8mm
M dimension 27.5mm
P dimension 5mm
Dimensions  VIEW

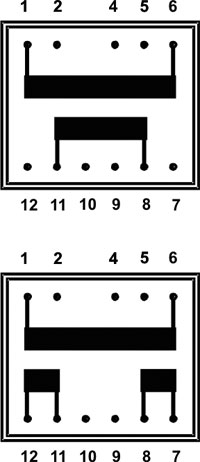

Schematic diagram  VIEW

Availability: With order
