Specifications |
| Manufacturer |
INDEL |
| Transformer type |
encapsulated |
| Power |
1VA |
| Primary voltage |
230V AC |
| Secondary voltage 1 |
6V |
| Secondary voltage 2 |
6V |
| Secondary winding current 1 |
0.08A |
| Secondary winding current 2 |
0.08A |
| Mounting |
PCB |
| Pri./sec. insulation strength |
4kV/60s |
| Sealing |
IP00 |
| Conform to the norm |
PN-EN 61558 |
| Thermal class |
Ta40B |
| Insulation class |
II |
| Weight |
80g |
| A dimension |
29mm |
| B dimension |
33.5mm |
| C dimension |
14.9mm |
| P dimension |
5mm |
| m dimension |
20mm |
| Dimensions |
 VIEW |

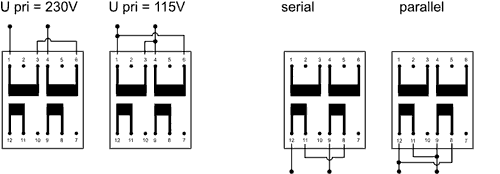

| Schematic diagram |
VIEW |
| |
|
