Current sensor - Current transformer, AS, R 43Ω, 1682mH, 40mA, W 9.53mm, Ø 5mm

Κωδικός: 37479

PPAS105 PDF

PPAS105

Τιμή χωρίς ΦΠΑ:  2.80 €
Αξία ΦΠΑ:  0.67 €
Τελική με ΦΠΑ:  3.48 €
Ποσότητα:
* Αποστολή σε 2-3 εργάσιμες ημέρες.
Specifications
Manufacturer TALEMA
Type of transformer current transformer
Series AS
Resistance 43Ω
Inductance 1682mH
Secondary winding current 1 40mA
Width 9.53mm
Diameter 5mm
Height 20.4mm
Length 17.2mm
Secondary winding resistance 750Ω
Gear 1:750
Schematic diagram  VIEW

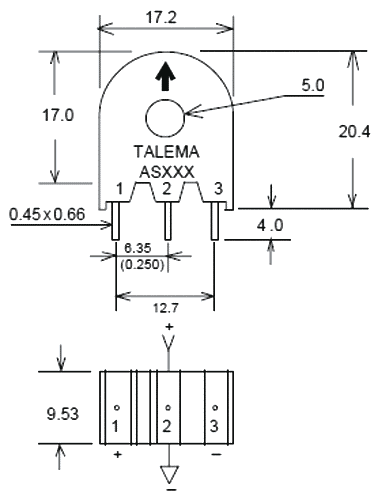

Dimensions  VIEW
Gross weight 5.34 g

Διαθεσιμότητα: Με παραγγελία
