Ferrite - Core ferrite Mat 3F3 3530nH 12g 2000mm3 63.4mm2 A 15mm

Prod code: 14338
P22/13-3F3 PDF

P22/13-3F3
Price:  3.55 €
VAT:  0.85 €
Final price with tax:  4.40 €
Amount:
Warning Long delivery time
Specifications
Manufacturer FERROXCUBE
Core type ferrite
Variant P
Material 3F3
Inductance factor Al 3530nH
Weight 12g
Effective core volume (Ve) 2000mm3
Effective core cross-section (Ae) 63.4mm2

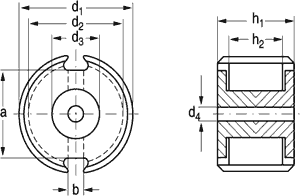

A dimension 15mm
B dimension 3.8mm
D1 dimension 22mm
D2 dimension 17.9mm
D3 dimension 9.4mm
D4 dimension 4.4mm
H1 dimension 13.4mm
H2 dimension 9.2mm
Dimensions  VIEW

Availability: With order
