DC-DC Converter - Converter DC/DC, 6W, Uin 4.5÷9V, Uout 15VDC, Uout2 -15VDC, SIP8

Prod code: 37636

TMR6-0523 PDF

TMR6-0523

Price:  25.20 €
VAT:  6.05 €
Final price with tax:  31.24 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer TRACO POWER
Type of converter DC/DC
Power 6W
Input voltage 4.5...9V
Output voltage 15V DC
Output voltage 2 -15V DC
Output current 200mA
Output current 2 200mA
Case SIP8
Body dimensions 21.8x11.2x9.1mm
Weight 4.8g
Efficiency 84%
Operating temperature -40...65°C
Switching frequency 100kHz
Protection short-circuit
Insulation voltage 1600V
Series TMR6
Number of outputs 2

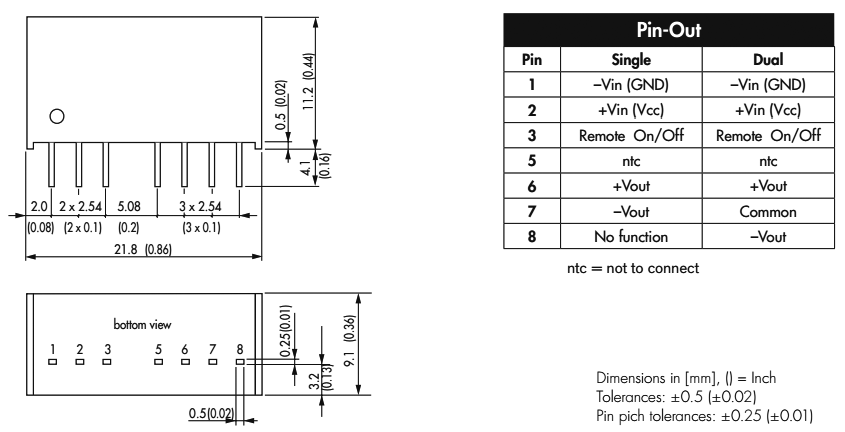

Dimensions  VIEW
Gross weight 4.65 g

Availability: With order
