DC-DC Converter - Converter DC/DC, 60W, Uin 9÷36V, Uout 12VDC, Iout 5A, Case 255

Prod code: 32053

RSD-60G-12 PDF

RSD-60G-12

Price:  39.50 €
VAT:  9.48 €
Final price with tax:  48.98 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer MEAN WELL
Type of converter DC/DC
Power 60W
Input voltage 9...36V
Output voltage 12V DC
Output current 5A
Kind of case 255
Body dimensions 128 x 60 x 25mm
Weight 0.29kg
Efficiency 92%
Operating temperature 40...70°C
Protection overload, against reverse polarity, overheating, voltage growth, short-circuit
Insulation voltage 4kV DC
Power supply/converter features rated parameters obtained at full load
Mounting for building in
Series RSD-60
Number of outputs 1
Application railway application

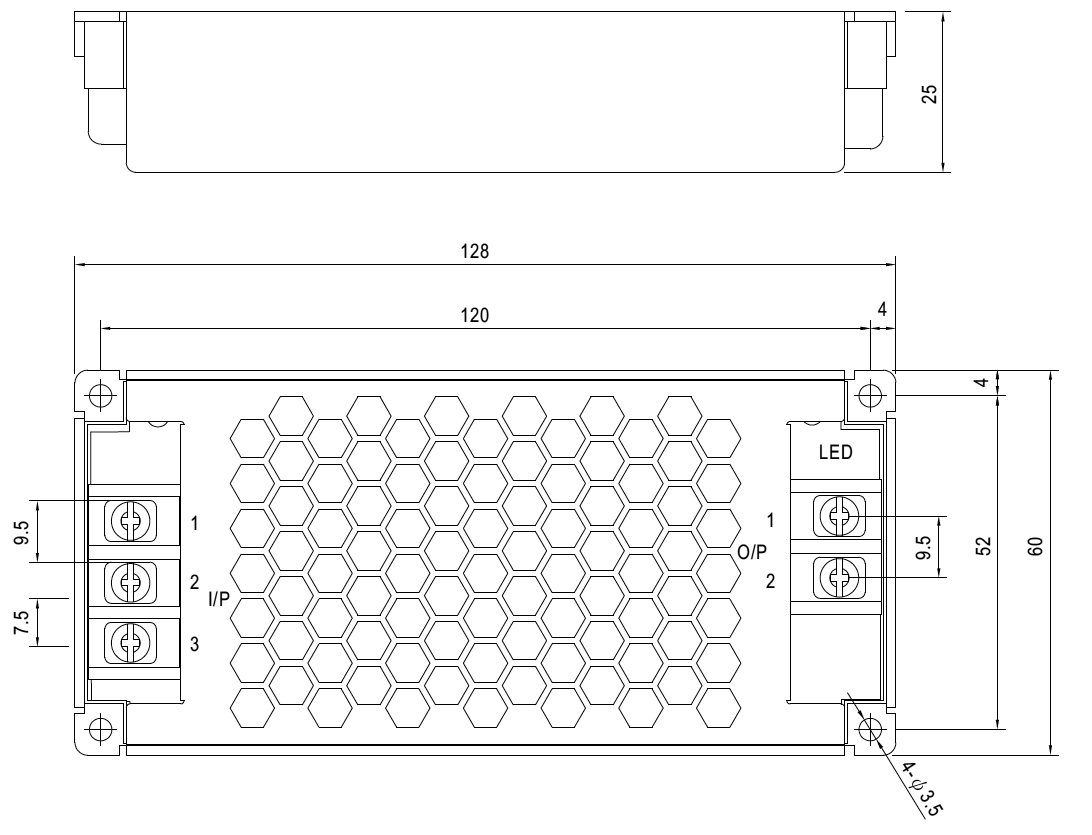

Dimensions  VIEW

Availability: With order
