DC-DC Converter - Converter DC/DC, 5W, Uin 4.5÷13.2V, Uout 15VDC, Uout2 -15VDC

Prod code: 37637

TDN5-0923WI PDF

TDN5-0923WI

Price:  29.03 €
VAT:  6.97 €
Final price with tax:  36.00 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer TRACO POWER
Type of converter DC/DC
Power 5W
Input voltage 4.5...13.2V
Output voltage 15V DC
Output voltage 2 -15V DC
Output current 168mA
Output current 2 168mA
Case DIP
Body dimensions 13.2x9.1x10.2mm
Weight 2.7g
Efficiency 83%
Operating temperature -40...75°C
Switching frequency 100kHz
Protection short-circuit
Insulation voltage 1.6kV
Series TDN5
Number of outputs 2

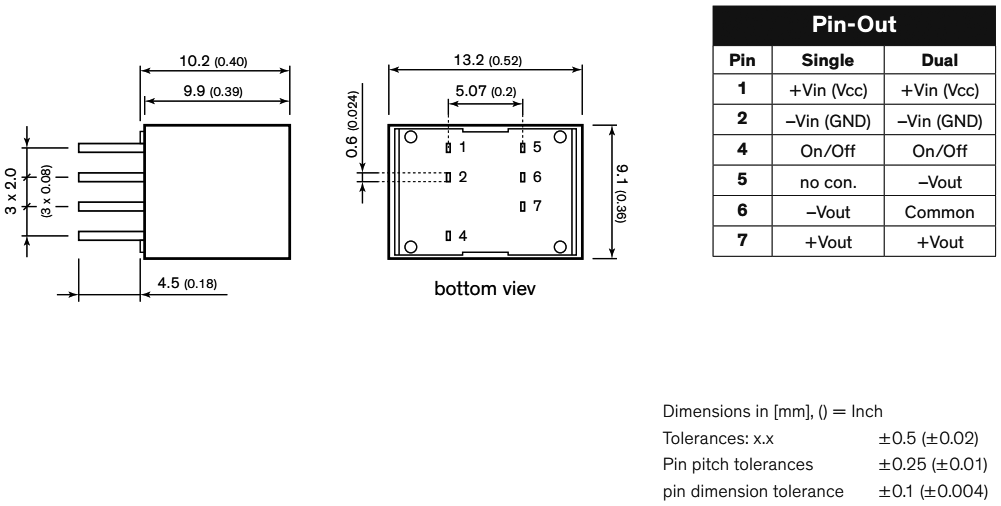

Dimensions  VIEW
Gross weight 2.613 g

Availability: With order
